| HK1022(Side view) | ||||||||||
| Product characteristics | ||||||||||
| ·High luminous efficiency, unique optical light distribution structure, | ||||||||||
| uniform and soft lighting, dot-free and no shadow | ||||||||||
| · High light transmittance, food-grade environmental silicone material, | ||||||||||
| with good flexibility and stylish appearance, exquisite and unique | ||||||||||
|
· IP67, with resistances to saline solutions, acids & alkalis, |
||||||||||
| corrosive gases, fire and UV | ||||||||||
| · CE、FCC、UL、ROHScertification | ||||||||||
| · Ta:-20~45℃; Tc: 0℃～60℃ | ||||||||||
| Basic parameters | Photoelectric parameters | |||||||||

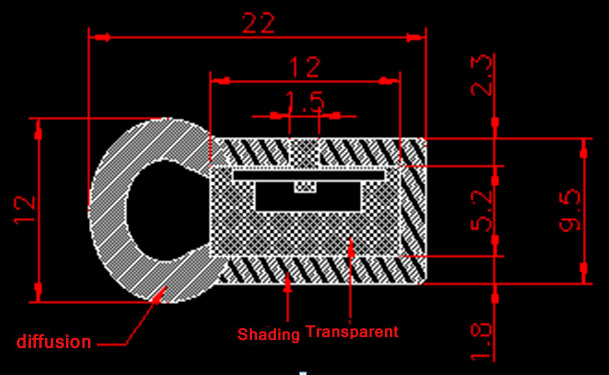

| Size: 5000×10×22mm | CRI/Ra: >80、( >90、 >95 ) | |||||||||
| Cutting unit：25mm/50mm | CCT(k): 2300k/2700K/3000K/4000K/5000K/6000kR/G/B/Y | |||||||||
| input voltage：12VDC/24VDC | LM/M: 260/280/280/300/300/300 | |||||||||
| Input current: 1.5A/1m & 7.5A/5m; | wavelength: 620-630nm/525-530nm/465-470nm | |||||||||
| 0.67A/1m（RGBY）@12VDC | /587-592nm | |||||||||
| 0.34A/1m（RGBY）@24VDC | LM/W: 18/20/20/22/22/22 | |||||||||
| Conventional power：white light：18W/m，RGBY: 8W/m | Suitable lamp beads : (No less than 60 LED/M) | |||||||||
| maximum power：white light：24W/m，RGBY: 8.8W/m | 2835、3014、2110、2216、3528、5050、5730 | |||||||||
| Bending diameter：＞30mm | ||||||||||
